Real Fitment. Real Filtration.

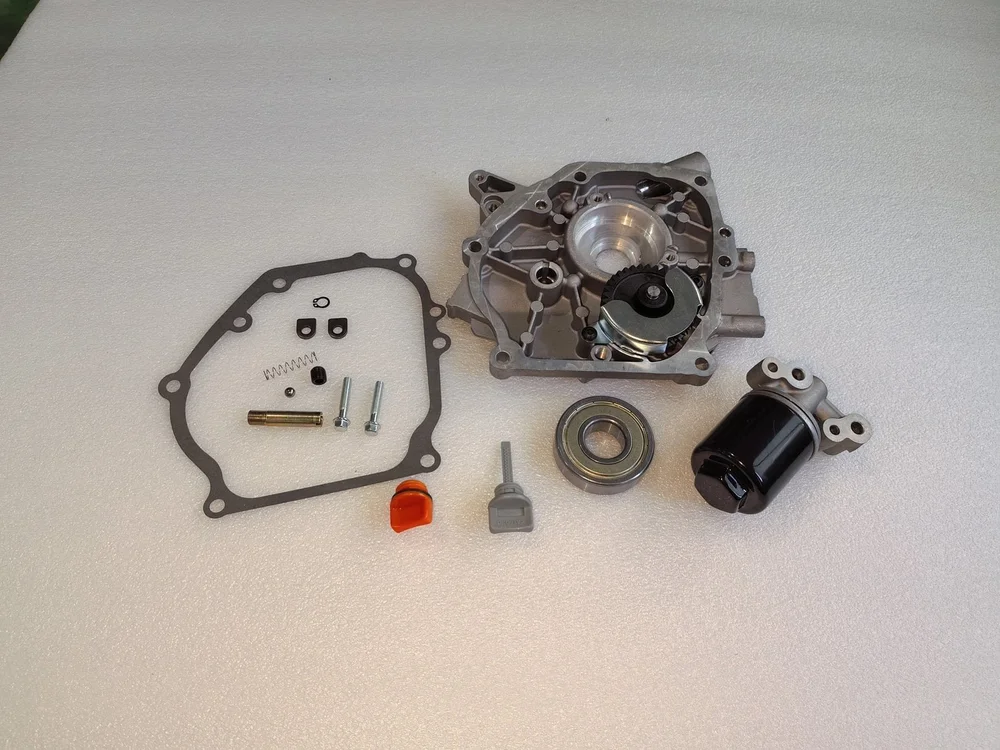

GX200 / Clone Oil Pump & Filter KitWhy this kit matters
Oil pressure and spin-on filtration in a tight mini bike package.
This side cover gives GX200 / Clone-style engines a cleaner, more controlled oiling setup than basic splash-only lubrication. Pressurized oiling helps move oil where the engine needs it, while the spin-on filter catches fine debris before it keeps circulating through the crankcase.
- Cleaner oilFilter media traps fine material that would otherwise stay in circulation.
- Better protectionHelps support rod, bearing, and rotating assembly life.
- Serviceable setupSpin-on filter placement makes maintenance easier.
Mega Moto 80 / RT100
Frame Clearance Confirmed
Side cover and filter shown installed in-frame so customers can see the frame tube, filter location, and service access before ordering.
Starter clearance note
Flip the Relay
When using electric start, the relay on the starter motor needs to be flipped so it clears the oil filter. This keeps the filter usable without fighting the starter hardware.
Cut-open filter media
What filtration catches
The cut-open filter media shows why filtration matters. Fine debris and break-in material can collect in the filter instead of continuing through the oiling system.
Builder checklist
Before final install
- Verify side cover gasket alignment and sealing surfaces.
- Confirm the filter clears the frame, starter, and wiring.
- Flip the starter relay when needed for filter clearance.
- Prime and inspect the oiling system before hard running.
- Recheck for leaks after the first heat cycle.
Designed, tested, produced
From prototype to finished part.
At Down Low Minis, our parts begin with real fitment problems we want to solve for mini bike builders. From prototype testing to finished production, each part is refined with a clear purpose before it reaches your build.
Prototype Printing
Before production, we print and test prototypes so we can check alignment, mounting, hardware access, and real-world installation. This stage lets us improve the design before metal is cut.
Production Parts
Once the design proves itself, it moves into production. The finished parts we sell are the result of our own development process, built for riders who care about performance and detail.
Featured Products
CNC-machined billet 6061 aluminum construction – thicker, more rigid, and distortion resistant.
Integrated high-flow oil pump with spin-on filter for superior lubrication.
Added needle bearing for the camshaft – reduced friction and extended life.
Wider crankshaft bearing for maximum stability.
Includes gasket, oil cooler filter adapter.
Compatible with all GX200 side cover profiles and original GX200 side cover gaskets.
Direct fit for Clone, Tillotson, Wildcat, and Hemi bottom-end motors.
⚠️ Not compatible with Non-Hemi Predator engines.
All motors and cams are different. Some clearance may be need.
Fits 224 Non hemi, 212 Hemi, 212 Ghost, Gx200, Ducar/Clone motors
Increased Rigidity for Improved Engine Dynamics
The billet construction of this side cover makes it significantly more rigid than the original cast version. This added stiffness reduces flex in the crankcase, helping to stabilize engine harmonics at high RPM. By minimizing unwanted vibration and distortion, the side cover not only improves overall performance but also enhances engine longevity—making it an ideal choice for high-performance and racing applications.
Product Description

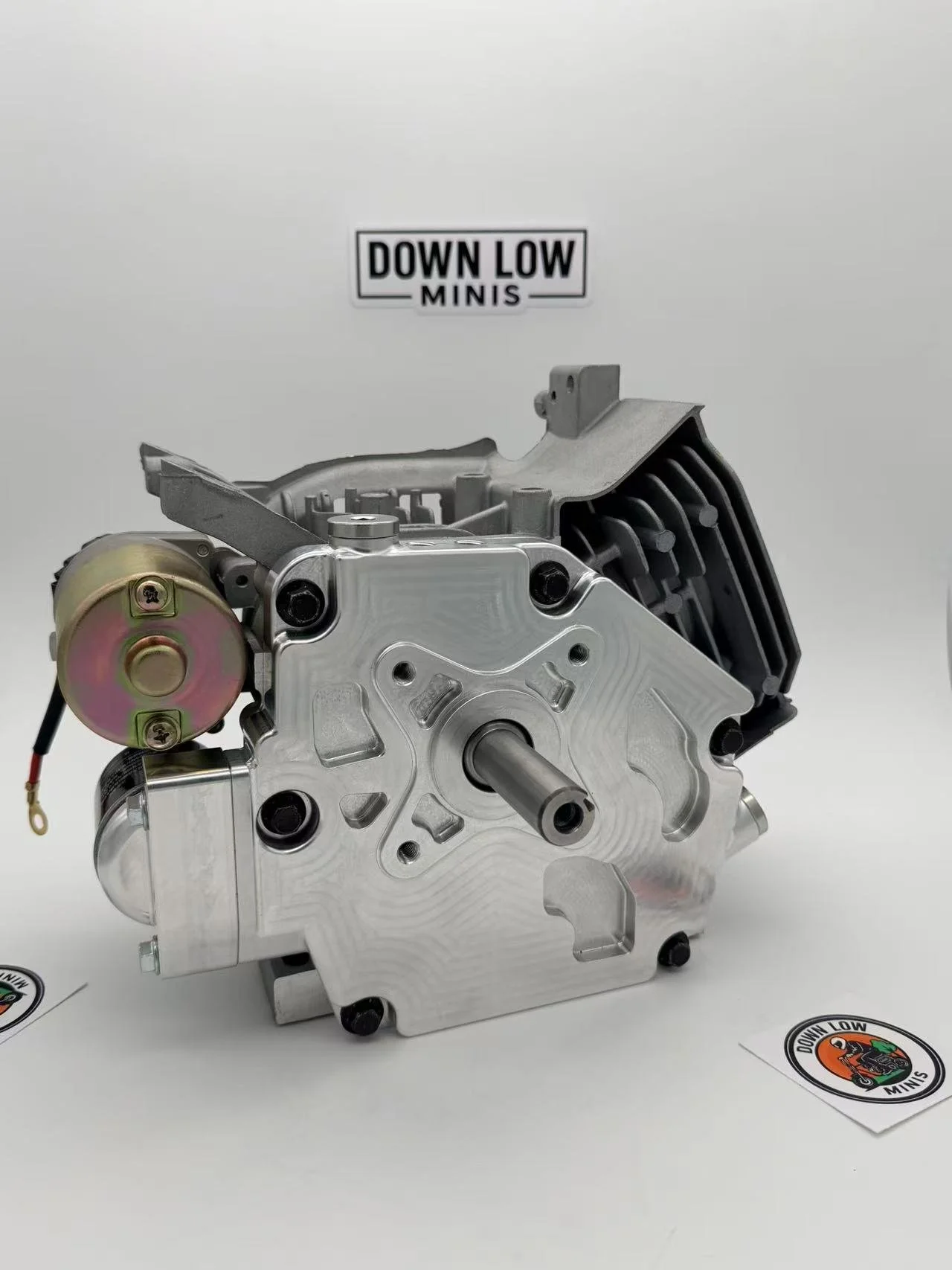

The Billet Oil Pump Side Cover is the premium evolution of the standard GX200 oil filter side cover. Engineered for racing and extreme off-road applications, this upgrade combines precision, rigidity, and superior lubrication to keep your engine running reliably under demanding conditions.
Constructed from CNC-machined billet aluminum, the side cover is significantly thicker and more rigid than cast versions, eliminating flex under heavy loads. A needle bearing has been added for the camshaft, reducing friction and wear for smoother operation and longer life. Combined with dual crankshaft bearings, this cover ensures superior strength and protection across the entire bottom end of your engine.
The integrated high-flow oil pump and spin-on filter maintain cleaner oil and deliver consistent lubrication, extending service intervals and reducing maintenance. An anodized finish provides additional corrosion resistance, ensuring lasting durability. Each unit undergoes strict quality control testing to guarantee race-ready reliability.
Standard vs. Billet Side Cover
Standard vs. Billet Side Cover
Oil Pump & Spin-On Filter
Standard: Yes
Billet: Yes
Camshaft Support
Standard: Standard support
Billet: Added needle bearing
Material
Standard: Cast aluminum
Billet: CNC-machined billet 6061 aluminum (thicker & more rigid)
billet filter adapter
Standard: No
Billet: Yes
Application
Standard: General performance & lubrication upgrade
Billet: Racing, high stress, and extreme off-road use, and extreme cruisers.
O-Ring Seal
Standard: No
Billet: Yes
Why Choose the Billet Version?
The standard side cover provides reliable lubrication and an upgrade for most builds. However, the billet version offers added rigidity, precision machining, and enhanced camshaft support, making it the superior choice for those seeking maximum strength, long-term reliability, and consistent performance under extreme conditions.
With the included oil cooler filter adapter, it allows the ability to connect a oil cooler in-line with the engine, no need for drilling and tapping. this new design includes all fittings shown above, and comes assembled ready for install.

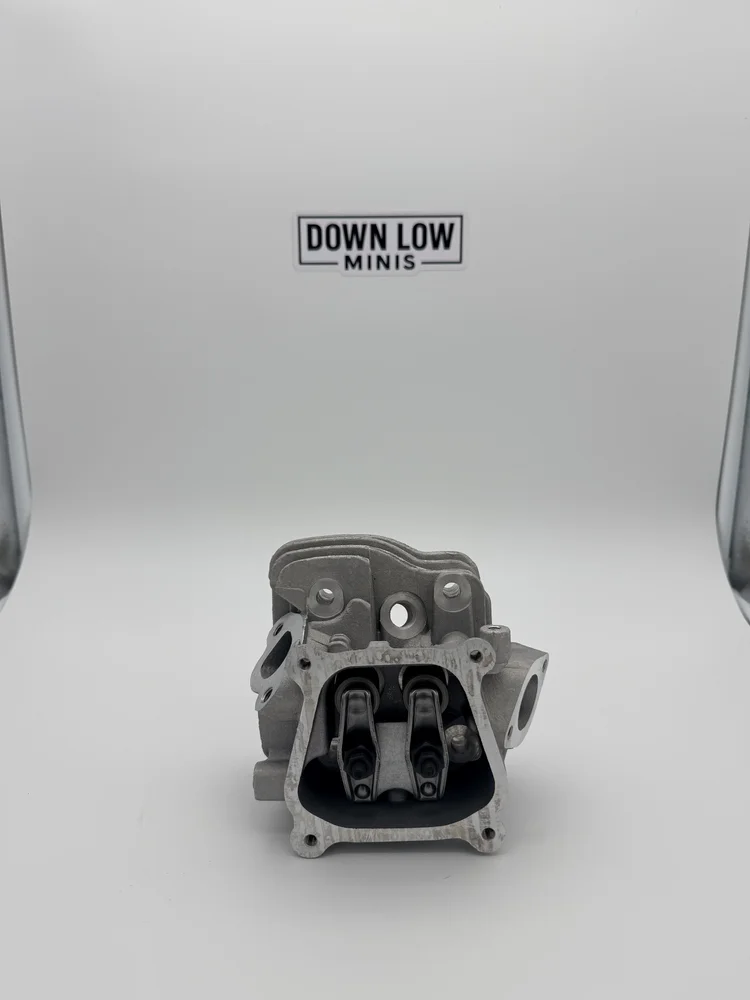

Transform your GX200's power with the Shredder Cylinder Head, designed for peak performance and reliability.
Precision-engineered for GX200 engines, ensuring perfect fit and performance.
Boosts efficiency with optimized airflow and combustion.
Durable construction for long-lasting use and reliability.

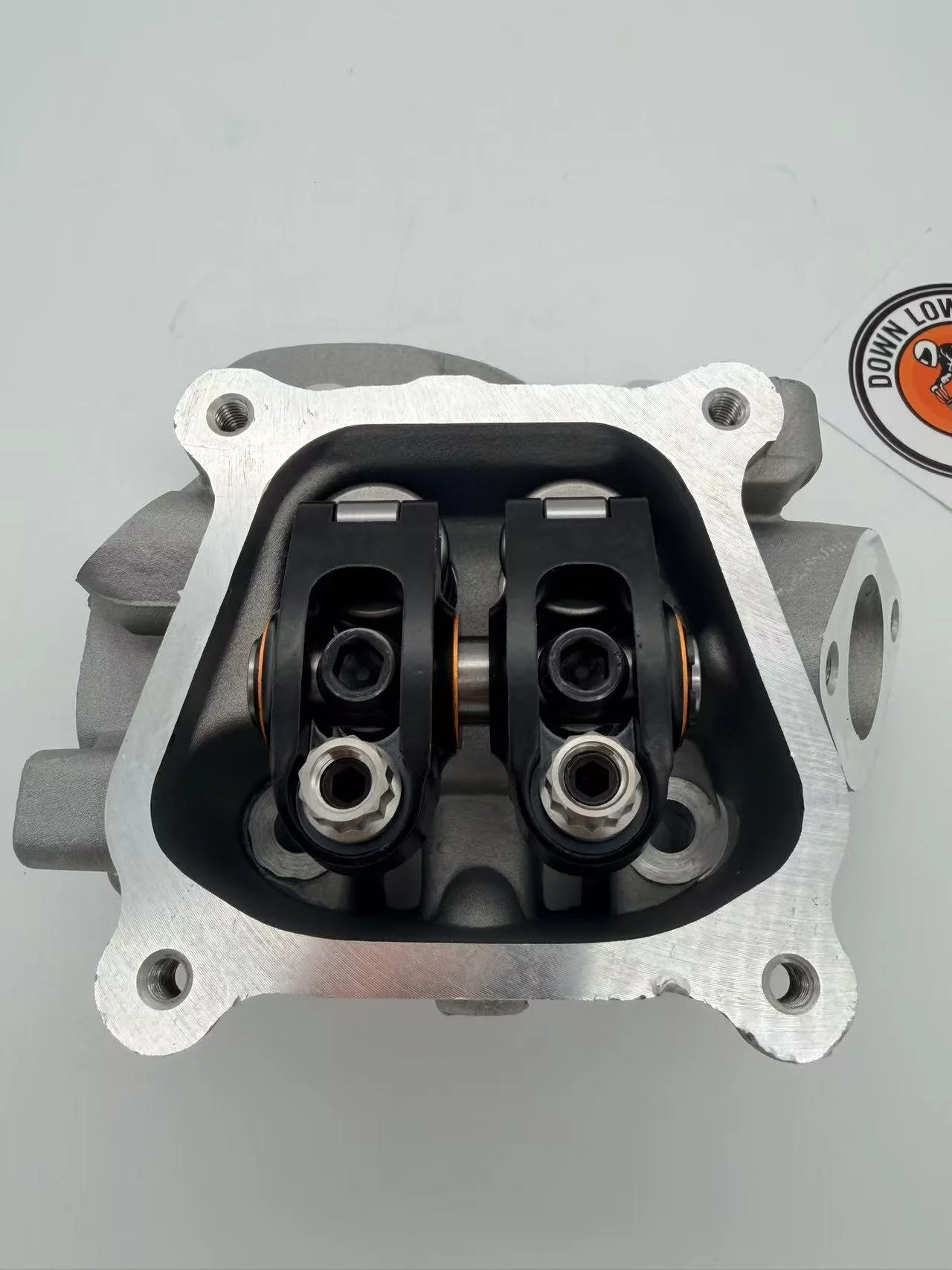

1.3 ratio rockers
Intake: 28.5mm
Exhaust: 24mm
Spring weight: 26lbs
Valve stem: 5.5mm
Upgrade your GX200 engine with this shredder cylinder head and experience enhanced performance that makes every drive a thrill.
Includes 1.3 ratio stamped rockers, valves, springs, retainers, ready to bolt on
Disclaimer: It is encouraged to purchase our upgraded springs for this head to allow high RPM and to negate Valve Float
Transform your GX200's power with the Shredder Cylinder Head, designed for peak performance and reliability.
Precision-engineered for GX200 engines, ensuring perfect fit and performance.
Boosts efficiency with optimized airflow and combustion.
Durable construction for long-lasting use and reliability.
Intake: 28.5mm
Exhaust: 24mm
Spring weight: 26lbs
Valve stem: 5.5mm
Upgrade your GX200 engine with this shredder cylinder head and experience enhanced performance that makes every drive a thrill.
Includes 1.2 ratio stamped rockers, valves, springs, retainers, ready to bolt on
